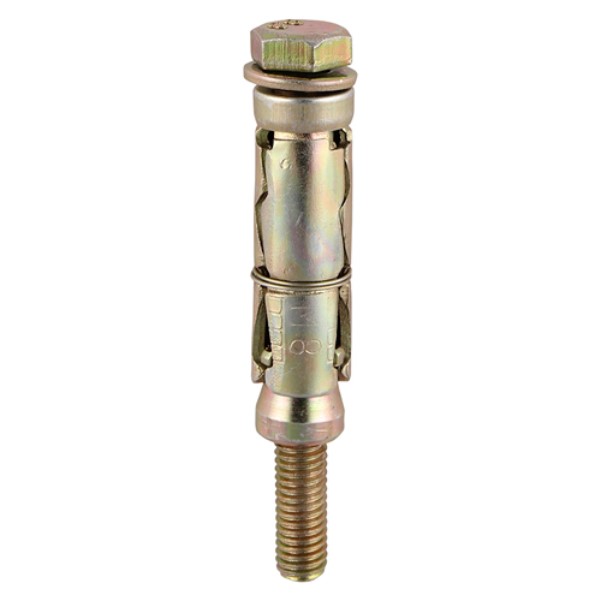

TIMCO Shield Anchor Loose Bolt M10/50L box 25

**Sold Individually**

Ideal for fixing through the fixture once the shield has been installed into substrate.
Compatible with most types of metric threaded components.
A three segmented expansion anchor used in concrete, brick or stone.
Torque controlled.

TECHNICAL DATA:
Bolt Length mm: 110
Centre Spacing mm: 180
Corrosion Rating: 1 - Clean, dry; low humidity environments
Drill Hole Dia. mm: 16
Edge Distance mm: 90
Fixture Hole Diameter mm: 12
Included Items: M10 Form A Washers (Qty 25)
Max Fixture Thickness mm: 50
Min Drill Hole Depth mm: 70
Point Type: B Point
Shield Length mm: 60
Socket Size mm: 17
Substrates: Concrete, Brick, Stone
Thread Dia. mm: M10
Thread Type: Metric
Type: Loose
Washer Size mm: M10
