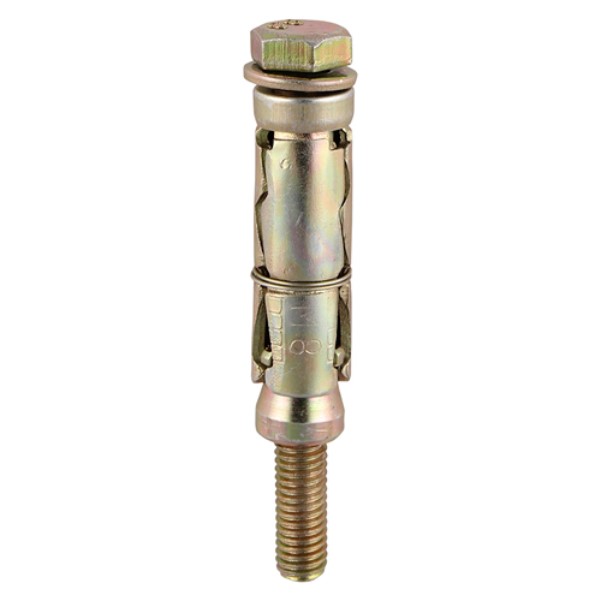

TIMCO M8:25L SHIELD ANCHOR LOOSE BOLT 0825LSH (50)

**Sold Individually** Ideal for fixing through the fixture once the shield has been installed into substrate. Compatible with most types of metric threaded components. A three segmented expansion anchor used in concrete, brick or stone. Torque controlled.

TECHNICAL DATA: Bolt Length mm: 75 Centre Spacing mm: 150 Corrosion Rating: 1 - Clean, dry; low humidity environments Drill Hole Dia. mm: 14 Edge Distance mm: 75 Fixture Hole Diameter mm: 10 Included Items: M8 Form A Washers (Qty 50) Max Fixture Thickness mm: 25 Min Drill Hole Depth mm: 60 Point Type: B Point Shield Length mm: 50 Socket Size mm: 13 Substrates: Concrete, Brick, Stone Thread Dia. mm: M8 Thread Type: Metric Type: Loose Washer Size mm: M8
