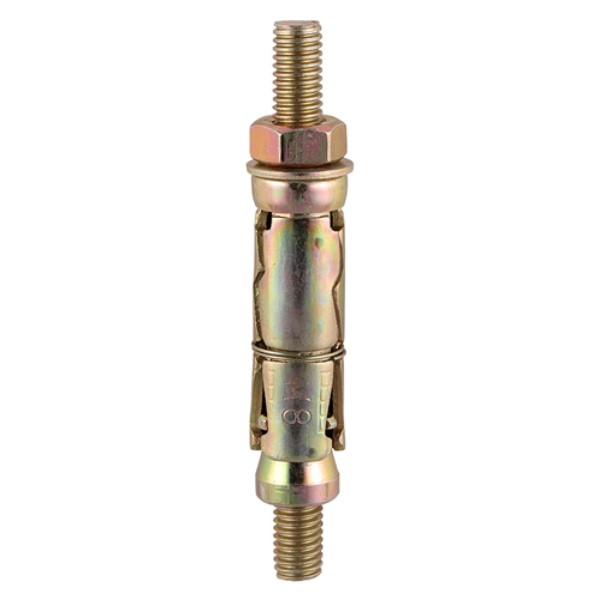

TIMCO Shield Anchor Projecting Bolt M10/30P

**Sold Individually**

The projecting stud allows the fixture to be positioned into place and then fastened secure.
Compatible with most types of metric threaded components.
A three segmented expansion anchor used in concrete, brick or stone.
Torque controlled.

TECHNICAL DATA:
Centre Spacing mm: 180
Corrosion Rating: 1 - Clean, dry; low humidity environments
Drill Hole Dia. mm: 16
Edge Distance mm: 90
Fixture Hole Diameter mm: 12
Included Items: M10 Form A Washers (Qty 50)
M10 Hex Full Nuts (Qty 25)
Max Fixture Thickness mm: 30
Min Drill Hole Depth mm: 70
Nut Size mm: M10
Nut Socket Size mm: 17
Point Type: B Point
Shield Length mm: 60
Stud Length mm: 100
Substrates: Concrete, Brick, Stone
Thread Dia. mm: M10
Thread Type: Metric
Type: Projecting
Washer Size mm: M10
