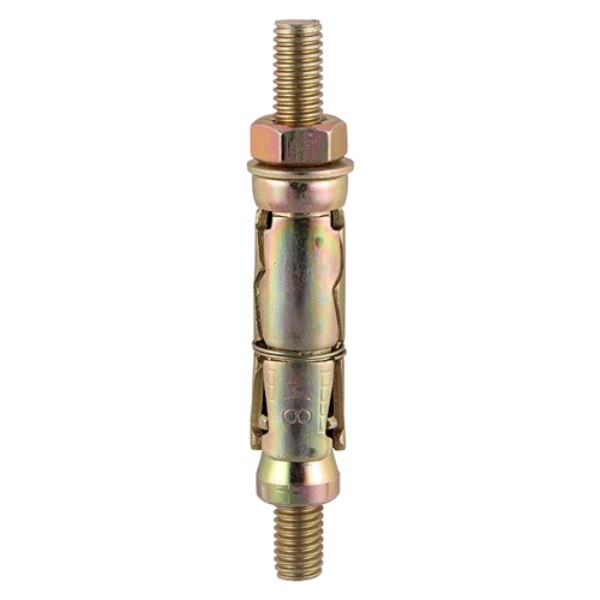

TIMCO Shield Anchor Projecting Bolt M12/30P

The projecting stud allows the fixture to be positioned into place and then fastened secure.
Compatible with most types of metric threaded components.
A three segmented expansion anchor used in concrete, brick or stone.
Torque controlled.

TECHNICAL DATA:
Centre Spacing mm: 225
Corrosion Rating: 1 - Clean, dry; low humidity environments
Drill Hole Dia. mm: 20
Edge Distance mm: 120
Fixture Hole Diameter mm: 14
M12 Hex Full Nuts (Qty 10)
Max Fixture Thickness mm: 30
Min Drill Hole Depth mm: 85
Nut Size mm: M12
Nut Socket Size mm: 19
Point Type: B Point
Shield Length mm: 75
Stud Length mm: 120
Substrates: Concrete, Brick, Stone
Thread Dia. mm: M12
Thread Type: Metric
Type: Projecting
Washer Size mm: M12
