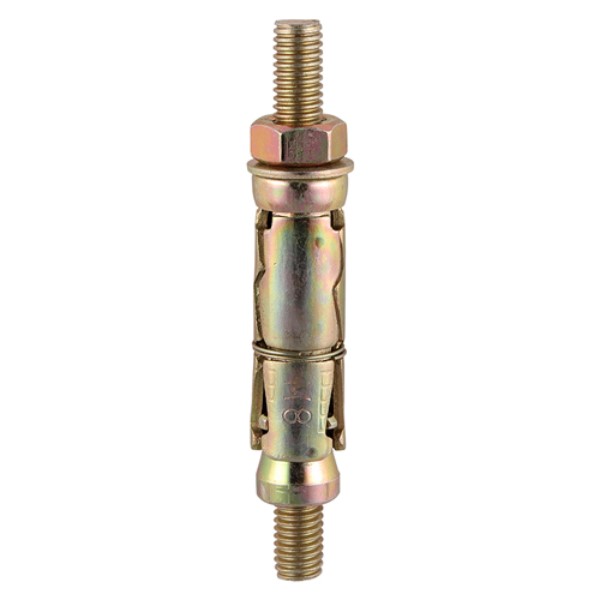

TIMCO Shield Anchor Projecting Bolt M8/60P

The projecting stud allows the fixture to be positioned into place and then fastened secure.
Compatible with most types of metric threaded components.
A three segmented expansion anchor used in concrete, brick or stone.
Torque controlled.

TECHNICAL DATA:
Centre Spacing mm: 150
Corrosion Rating: 1 - Clean, dry; low humidity environments
Drill Hole Dia. mm: 14
Edge Distance mm: 75
Fixture Hole Diameter mm: 10
Max Fixture Thickness mm: 60
Min Drill Hole Depth mm: 60
Nut Size mm: M8
Nut Socket Size mm: 13
Point Type: B Point
Shield Length mm: 50
Stud Length mm: 120
Substrates: Concrete, Brick, Stone
Thread Dia. mm: M8
Thread Type: Metric
Type: Projecting
Washer Size mm: M8
