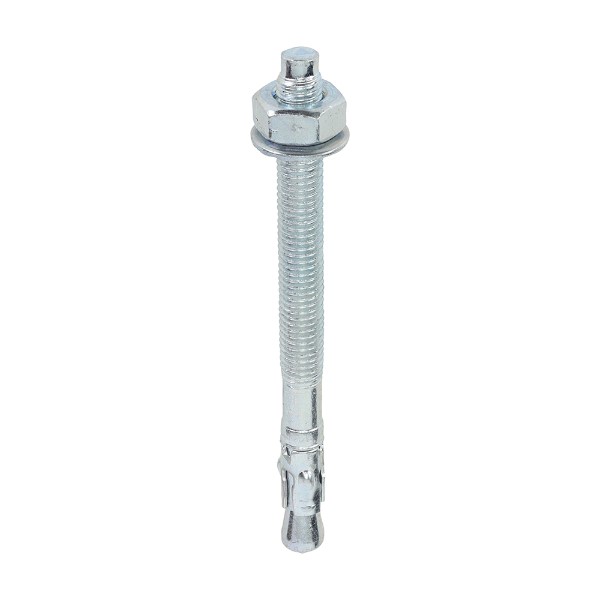

TIMCO M10 x 120 THROUGHBOLT 10120TB (50)

A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight. Chamfered head design to prevent damage to thread during installation. Zinc plated and passivated (3-5 microns). Manufactured from cold formed carbon steel (grade 5.8). Special expansion clip for rapid installation. TECHNICAL DATA: Centre Spacing mm: 140 Corrosion Rating: 1 - Clean, dry; low humidity environments DIN Standard: DIN 125-A, DIN 934 Drill Hole Dia. mm: 10 Edge Distance mm: 70 Fixture Hole Diameter mm: 12 Max Fixture Thickness mm: 55 Min Drill Hole Depth mm: 50 Nut Size mm: M10 Nut Socket Size mm: 17 Nut Type: Hex Full Size Thread Dia. x L mm: M10 x 120 Substrates: Concrete Thread Dia. mm: M10 Thread Type: Metric Washer Size mm: M10 x 21 Washer Type: Form A
