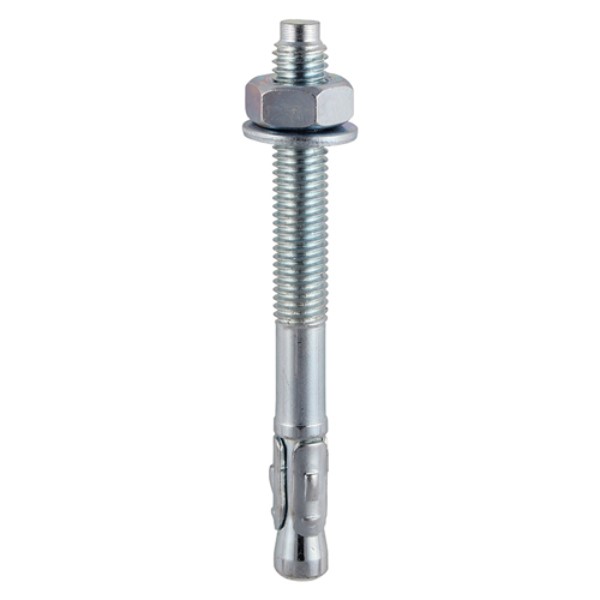

TIMCO M12 x 100 THROUGHBOLT 12100TB (25)

A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight. Chamfered head design to prevent damage to thread during installation. Zinc plated and passivated (3-5 microns). Manufactured from cold formed carbon steel (grade 5.8). Special expansion clip for rapid installation. TECHNICAL DATA: Centre Spacing mm: 150 Corrosion Rating: 1 - Clean, dry; low humidity environments DIN Standard: DIN 125-A, DIN 934 Drill Hole Dia. mm: 12 Edge Distance mm: 75 Fixture Hole Diameter mm: 14 Max Fixture Thickness mm: 25 Min Drill Hole Depth mm: 60 Nut Size mm: M12 Nut Socket Size mm: 19 Nut Type: Hex Full Size Thread Dia. x L mm: M12 x 100 Substrates: Concrete Thread Dia. mm: M12 Thread Type: Metric Washer Size mm: M12 x 24 Washer Type: Form A
