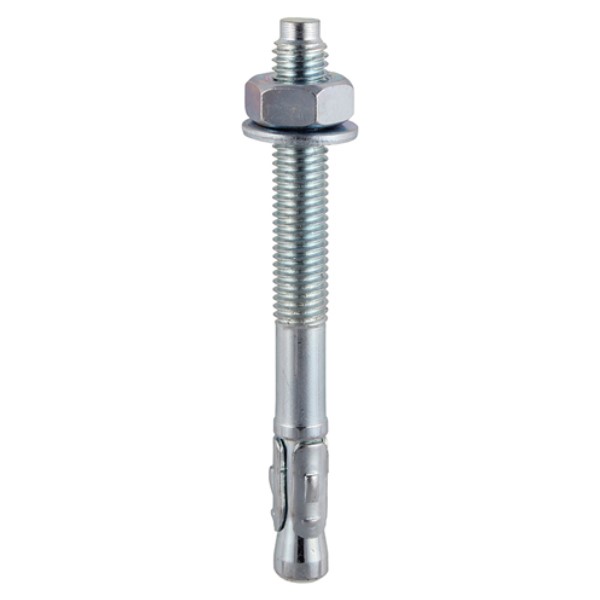

TIMCO Through Bolt Ø12 x 120mm BZP

**Sold Individually**

A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
Chamfered head design to prevent damage to thread during installation.
Zinc plated and passivated (3-5 microns).
Manufactured from cold formed carbon steel (grade 5.8).
Special expansion clip for rapid installation.

TECHNICAL DATA:
Centre Spacing mm: 150
Corrosion Rating: 1 - Clean, dry; low humidity environments
DIN Standard: DIN 125-A, DIN 934
Drill Hole Dia. mm: 12
Edge Distance mm: 75
Fixture Hole Diameter mm: 14
Included Items: M12 Hex Full Nuts & Form A Washers
Max Fixture Thickness mm: 45
Min Drill Hole Depth mm: 60
Nut Size mm: M12
Nut Socket Size mm: 19
Nut Type: Hex Full
Size Thread Dia. x L mm: M12 x 120
Substrates: Concrete
Thread Dia. mm: M12
Thread Type: Metric
Washer Size mm: M12 x 24
Washer Type: Form A
