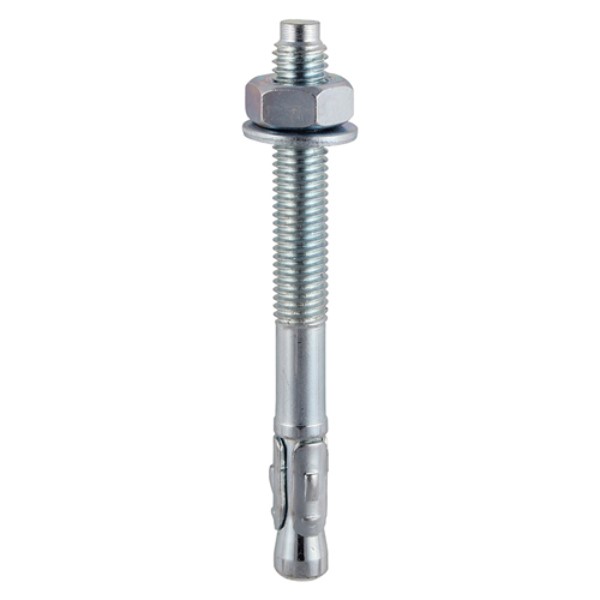

TIMCO Through Bolt Ø8 x 100mm BZP

A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
Chamfered head design to prevent damage to thread during installation.
Zinc plated and passivated (3-5 microns).
Manufactured from cold formed carbon steel (grade 5.8).
Special expansion clip for rapid installation.

TECHNICAL DATA:
Centre Spacing mm: 110
Corrosion Rating: 1 - Clean, dry; low humidity environments
DIN Standard: DIN 125-A, DIN 934
Drill Hole Dia. mm: 8
Edge Distance mm: 55
Fixture Hole Diameter mm: 9
Included Items: M8 Hex Full Nuts & Form A Washers
Max Fixture Thickness mm: 45
Min Drill Hole Depth mm: 45
Nut Size mm: M8
Nut Socket Size mm: 13
Nut Type: Hex Full
Size Thread Dia. x L mm: M8 x 100
Substrates: Concrete
Thread Dia. mm: M8
Thread Type: Metric
Washer Size mm: M8 x 17
Washer Type: Form A
